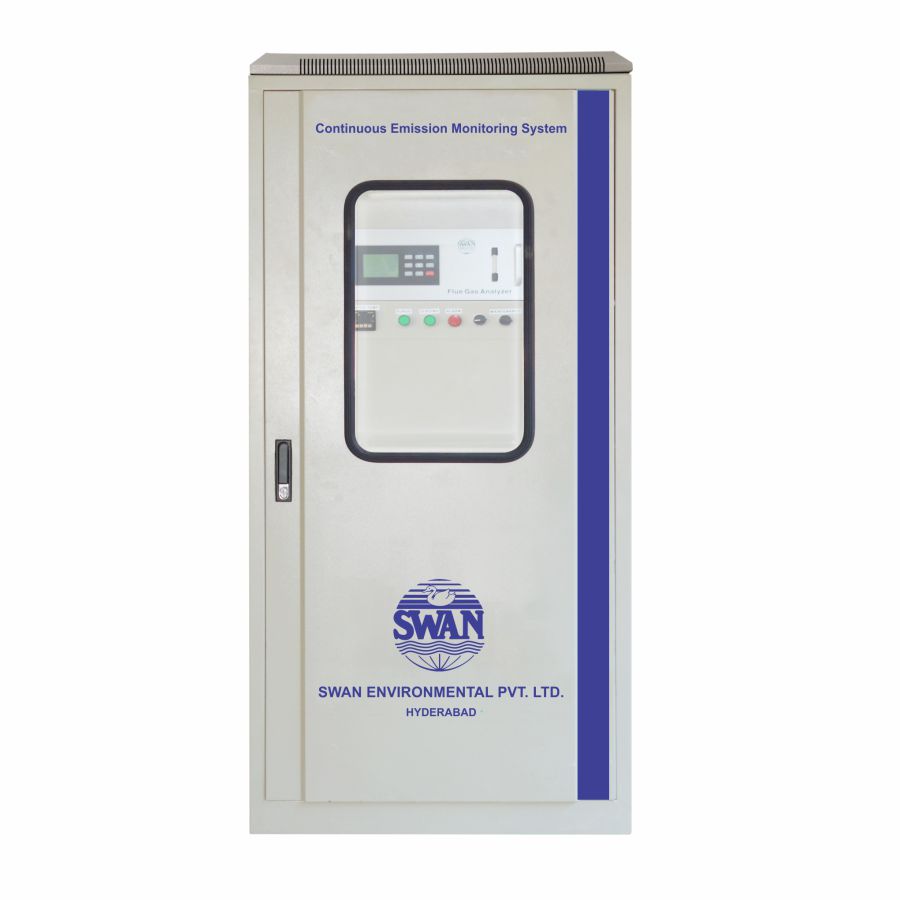

Continuous Emission Monitoring System (CEMS) is integrated with multi channel analysers which measures gases like SO2, NO2, NO, CO, CO2, O3, TOC/VOC/THC etc. with all options connected to data logging system and PC/client server.
SO2, NO2 & NO Analyser: NDUV (Non Dispersive Ultra Violet) based. Extractive type. High accuracy and reliability, fast response time. No cross interference between the gas being measured
SO2, NO2, NO, CO, CO2 & O2 Analyser: NDIR (Non Dispersive Infra Red) based CO & CO2 measurements. In-path type. Zirconium cell based O2 measurement. In-situ type. Accurate measurement of low concentration gas.
CO, CO2 etc. Analyser: TDLAS (Tunable Diode Laser Absorption Spectrum) technology and multiple reflection long optical path technology based. Extractive type. Measurable gases: O2,
CO, NH3, H2S, CO2, CH4, H2O.
TOC/VOC/THC Analyser: Based on chromatographic methods and FID detector. Can monitor VOC’s, CH4, THC, NMHC, low-carbon aldehyde ketone, benzene series (benzene, toluene, xylene, ethylbenzene, isopropyl benzene) & part of halogenated hydrocarbons.
Features:
- As per US EPAMethods and CPCB Guidelines
- In line with CPCB regulations
- Uploading of data to CPCB, SPCBs, PCC and
- company corporate servers.
- Cloud server facility.
- Remote calibration facility.
Turnkey Solutions:
- SWAN offers turnkey solutions for CEMS that span from design and detailed engineering, system integration, supply to installations, commissioning and uploading of data to PCB and company corporate servers.
- SWAN offers entire range of associated products as part of CEMS solution that include prefabricated shelter, UPS, PC, display boards, networking components, Wi-Fi units, gateways, A/D converters etc.
- Requirements are thoroughly studied to identify the items needed & engineering carried out to bring out most economical and sustaining customized solutions.
- Dedicated trained and experienced service team for after sales support across India.
