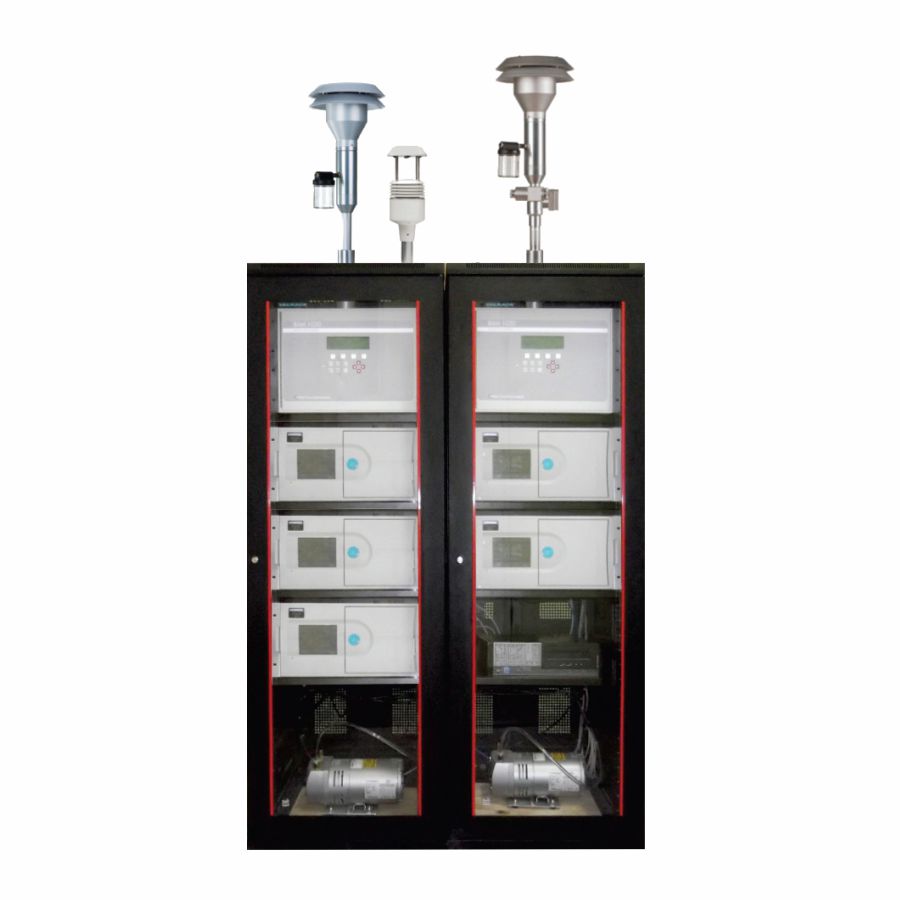

On-Line Continuous Ambient Air Monitoring System / Station for the measurement of SO2, NOx, CO, CO2, O3, PM10, PM2.5 etc. in the ambient environment. It is CPCB / USEPA approved and meets the latest specifications of National Ambient Air Quality Standards.
PM10 & PM2.5 Analysers: Operates on the principle of Beta Ray Attenuation and measures Particle Mass ranging from 0 to 5 mg/m3 with Minimum detection limit 1 µg/m3 . The equipment includes a PM10 inlet and PM2.5 WINS Impactor.
NOx and NH3 Analyser: Operates on the principle of Chemiluminescence method, ranging from 0 to 2000µg/m3 with minimum detection limit 0.5µg/m3
SO2 Analyser: Operates on the principle of UV Fluorescence method, ranging from 0 to 2800 µg/m3 with minimum detection limit 0.5 µg/m3
CO Analyser: Operates on the principle of NDIR method, ranging from 0 to 125mg/m3 with minimum detection limit 0.03 µg/m3
O3 Analyser: Operates on the principle of UV Photometry method, range : 0 to 2500µg/m3 with minimum detection limit 0.5 µg/m3
THC Analyser: Operates on the principle of Flame Ionization Detector (FID) and Selective Combustion. Measures THC, NMHC & CH4. Range 0-5, 0-10, 0-20, 0-50ppm with min. detection limit 0.22ppm.
Multigas Calibrator: Designed to calibrate gas analyzers manually, remotely controlled or automatically, for quality assurance. Multi Calibration upto 20 points.
BTEX Analyser: GC/PID for automatic monitoring of BTEX in air, water and soils. Has minimum detection level as low as 10 ppt for Application Benzene or 1,3-Butadiene in ambient air
All In One Weather Monitoring Station: Ultrasonic Wind Sensor, Barometric Pressure, Temperature, Relative Humidity, Rainfall, Solar Radiation etc.
Features
- Analyzers approved by various International Agencies like US EPA, TUV, EN, and in line with norms as defined by Central Pollution Control Board (CPCB) including online calibration from remotely located servers like CPCB and State PCB servers.
- Uploading of data to CPCB, SPCBs, PCC and company corporate servers.
- Cloud server facility.
- Remote calibration facility
Turnkey Solutions
- SWAN offers turnkey solutions for CAAQMS that span from design and detailed engineering, system integration, supply to installations, commissioning and uploading of data to PCB and company corporate servers.
- SWAN offers entire range of associated products as part of CAAQMS solution that include prefabricated shelter, UPS, PC, display boards, networking components, Wi-Fi units, gateways, A/D converters etc.
- Requirements are thoroughly studied to identify the items needed and engineering carried out to bring out the most economical and sustaining customized solutions.
- Dedicated trained and experienced service team for after sales support across India.
Applications
- To meet Central and State PCB regulations as per the prescribed National Ambient Air Quality Standards.
- Applicable to all industries like: cement, steel, pharmaceutical, pulp & paper, tanneries, chemical, power generation, mining, paints, petrochemicals, metallurgical, textile, food processing, distilleries etc
