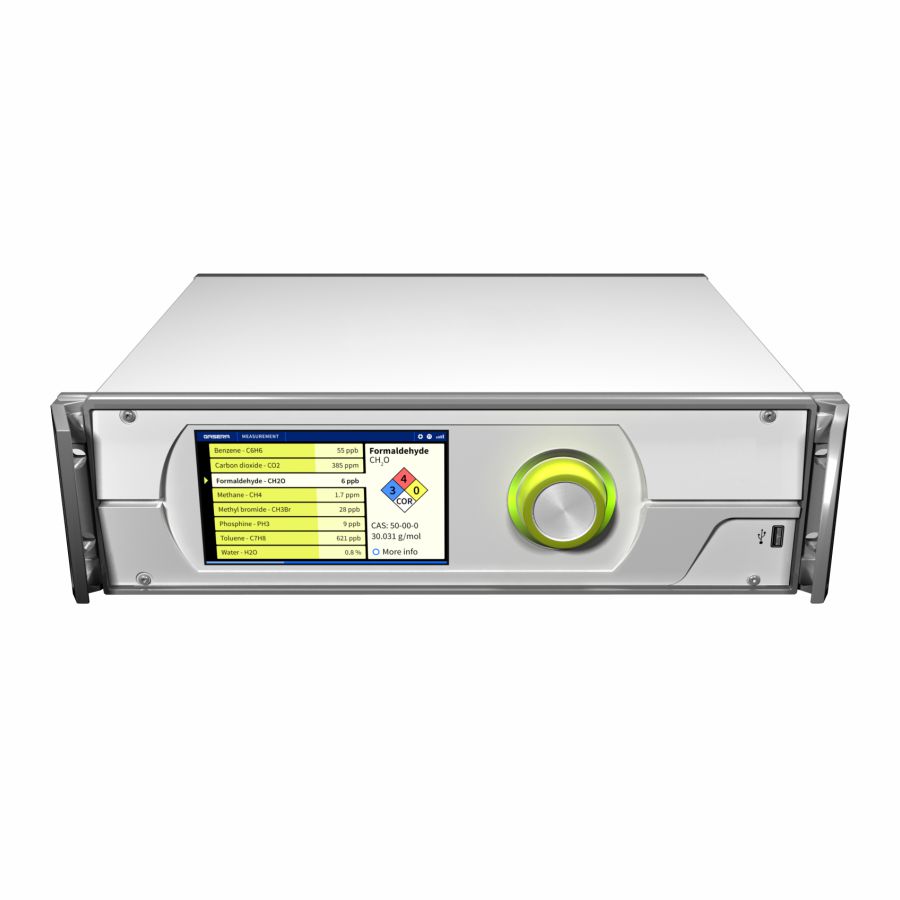

Continuous Photoacoustic HCl, HF Analyser is a photoacoustic multi-gas analyzer platform that can be configured to a wide variety of research and industrial applications.
It combines the best of both worlds in the detector and the light source sides. The unmatched performance is based on a photoacoustic infrared spectroscopy engine with a patented ultra-sensitive cantilever pressure sensor.
- Easy to use
- Remote control via Gasera Cloud
- Below ppb sensitivity with 5 orders of linear dynamic range
It can be tailored to suit multiple applications by selecting optimal lasers and/or light sources. For even more complex measurement scenarios, several analyzers can be stacked and synchronized to provide an ultimate solution for your application.
It provides the user with a simple and intuitive interface with high resolution display and a single rotating knob. In addition, the user can control the analyzer wirelessly with smartphone, tablet or other devices.
- Anesthetics: desflurane, enflurane, isoflurane, sevoflurane etc.
- CFCs and PFCs: CF4, C2F6, R13 , R-134a etc.
- Corrosives (at low levels): HCl, HCN, HF
- Hydrocarbons: CH4, C2H2, C2H4, C2H6 etc.
- Inorganics: CO, CO2, H2O, H2S, NO, NO2, N2O, NF3, NH3, SF6, SO2
- VOCs: acetone, benzene, ethanol, formaldehyde, methanol, toluene, xylenes etc.
Features:
- Based on patented photoacoustic spectroscopy with cantilever enhanced optical microphone
- Configurable to several applications by selecting relevant combination of light sources
- Response time user configurable from few seconds to several minutes
- Simultaneous analysis of up to 50 gases depending on configuration
- Typically Low or sub-ppb detection limits
- High selectivity
- Low sample volume and wide dynamic range
- Long re-calibration period
- Built in 2-point sampling
- User friendly calibration
- Automatic compensation for temperature and pressure fluctuations
- Versatile programming of analysis tasks
- Built in high resolution graphical display with user friendly menus, no external computer required
- Numerical and graphical presentation of the measurement results
- Remote control via Gasera Cloud
Applications:
- Animal husbandry
- Border security
- Cargo container safety
- Fenceline monitoring
- Indoor air quality and occupational safety
- Ship emissions monitoring
- Soil analysis
- Waste anesthetic gases
- Photocatalysis research
- Clean room monitoring
